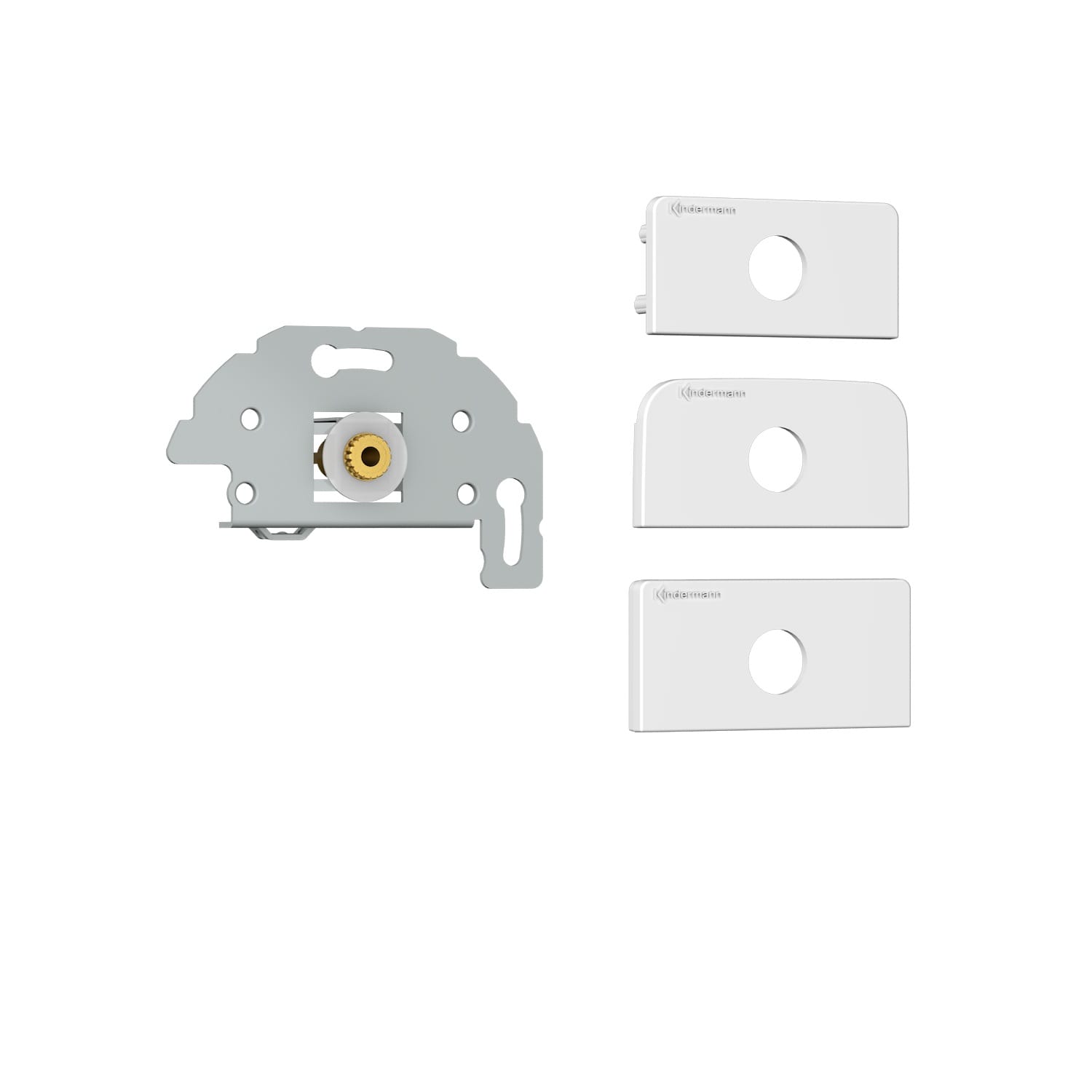

The Kindermann Konnect design click 3.5 mm audio module is designed to integrate a 3.5 mm audio jack into wall panels, table units and floor boxes.
This module is used to connect devices such as laptops, smartphones and audio devices via a standard 3.5mm jack. The version functions as a coupling module, allowing audio signals to be easily looped within a fixed installation.
The module is suitable for applications where an analog audio connection is required, such as in conference rooms, educational environments and presentation systems.
Within the Konnect design click system, the module is designed as a half module (1/2) and can be combined with other connections within the same cover frame.
The module is designed for installation in standard European flush-mounted boxes and connects to common switchgear programs such as PEHA, Busch-Jaeger and Niko. This allows an audio connection to be neatly added without replacing existing switchgear.
Thanks to the click mechanism, assembly is quick and tool-free.
Key features
- 3.5 mm audio built-in module (With solder connection back side)
- For analog audio connections
- Suitable for connecting laptops, smartphones and audio devices
- Functions as a coupling module (transit)
- Half module (1/2)
- Suitable for standard European flush-mounted boxes
- Compatible with common switchgear
- Assembly via toolless click system
- Color: white (RAL 9010)
Applications
Suitable for:
- audio connection points in meeting rooms
- wall panels and table units
- floor boxes
- teaching and training rooms
- presentation systems
- fixed installations with analog audio
Technical Information
- Product: Kindermann Konnect design click 3.5 mm audio module
- Type: audio built-in module
- System: Konnect design click
- Connection: 3.5 mm jack
- Signal type: analog audio
- Format: 1/2 module
- Mounting: toolless click system
- Color: white (RAL 9010)
- Order number: 7456000411
