The amplifier offers both tone control (bass & treble) and a switchable low-cut filter, allowing the audio quality to be fine-tuned to the room and speakers.

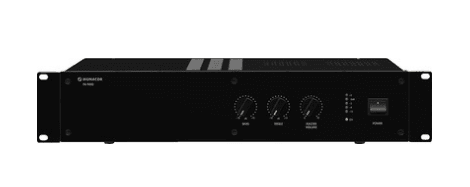

The PA-900S features a balanced XLR input, XLR line-out (feed-through) and screw terminals for speakers. It supports 100V, 70V and 4Ω systems, making it very versatile in commercial and public installations.
The ability to operate on a 24V emergency power supply in addition to mains power makes this amplifier suitable for critical installations where continuity is essential.
With a solid metal enclosure, a 2U rack height and included mounting brackets, installation is easy and professional.
Technical Specifications
General
- Mono PA power amplifier
- Order number: 0172080
- Power: 1 × 120 W RMS
Power
- Peak power: 160 W
- Rated power: 120 W
- Power @ 4 Ω: 120 W
- Power @ 70 V: 120 W
- Power @ 100 V: 120 W
- Output impedances: 4 Ω / 70 V / 100 V
Inputs & Outputs
Line input
- 1 × Line-in (XLR + screw terminal)
- Input sensitivity: 765 mV
Outputs
- 1 × Line-out (XLR) – feed-through (link)
- Speaker outputs via screw terminals
- 4 Ω
- 70 V
- 100 V
Audio performance
- Frequency range: 50 – 15,000 Hz
- S/N ratio: > 80 dB
- THD: < 0.5%
- Tone control:
- Bass: ±10 dB @ 100 Hz
- Treble: ±10 dB @ 10 kHz
- Low-cut filter: Switchable
Nutrition & Consumption
- Power supply: 230 V AC / 50 Hz / 300 VA
- Alternative: 24 V DC / 9 A (emergency power supply)
- Consumption (operational): 300 VA
- Permissible ambient temperature: 0-40 °C
Physical properties
- Dimensions: 482 × 88 × 275 mm
- Rack size: 19″ / 2U
- Net weight: 9.5 – 9.86 kg
- Gross weight: 11.31 kg
- Packing: 0.33 × 0.16 × 0.52 m
Key features
- Fanless design (silent operation)
- 2-way tone control
- Switchable low-cut filter
- Link output for loop-through
- 230 V + 24 V emergency power compatible
