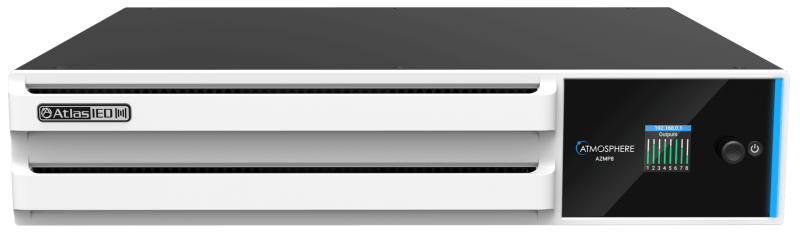

AtlasIED AZMP8-D

The AtlasIED AZMP8-D is a powerful 8-zone audio processor with integrated power amplifier and Dante network audio within the Atmosphere platform.
This processor combines comprehensive DSP functionality and flexible zone control with a 1200-watt built-in power amplifier, complemented by the benefits of digital audio over IP (Dante) for scalable and future-proof installations.

Thanks to intelligent power sharing, the total amplifier power is fully software adjustable independently per zone, from 5 W to 1200 W. Combined with Dante, the AZMP8-D is ideally suited for larger buildings and central audio infrastructures.

Key features

• 8 independent zones – full control per zone over source, volume and sound

• Integrated power amplifier (1200 W total) – powerful all-in-one solution

• Intelligent power sharing – power per zone freely adjustable from 5 W to 1200 W

• Software-based power distribution – optimal matching to speakers and zone size

• Dante network audio – easy integration into existing Dante networks

• Combination of local and network sources – analog audio and Dante audio within one system

• Front control present – local control and status display on the device

• Advanced DSP functionality – EQ, compressor, limiter, ducking, delay and TilterFilter™

• Automatic noise compensation – dynamic volume control based on ambient noise

• Built-in message player and scheduler – for scheduled notifications and ringtones

• Room Combine functionality – combine zones for flexible use of space

• Multiple accessory ports – support for Atmosphere wall controllers and remote inputs

• Self-heal technology – accessories automatically take over settings when replaced

• Web-based operation – configuration and management via browser, without separate app

Strength, flexibility and Dante integration

The AZMP8-D offers maximum freedom in both power distribution and audio distribution.
Using the Atmosphere software, you determine exactly how much power each zone receives, while Dante allows for centralized audio distribution over the IP network and easy expansion.

This makes the AZMP8-D ideal for:

• large buildings with many areas

• combinations of small and large spaces

• varying loudspeaker loads

• installations with a central Dante audio backbone

Professional DSP processing

The AZMP8-D features the same extensive DSP capabilities as other Atmosphere processors:

• Full equalizers and filters per input and zone

• Dynamic compression and automatic gain control

• Crossover, delay and limiter functions

• Ducking and priority control for paging

• TilterFilter™ for natural and consistent sound balance

Applications

• Large-scale hospitality and hospitality

• Retail and chain stores

• Offices and commercial buildings

• Educational institutions

• Dante-based audio and paging systems

• Projects where a powerful all-in-one Dante solution is desired

In a nutshell

The AtlasIED AZMP8-D combines an advanced 8-zone DSP processor, a 1200 W integrated power amplifier and Dante network audio in one central platform.
With intelligent power sharing, flexible audio distribution and extensive DSP functionality, the AZMP8-D is the powerful heart of professional, large-scale multi-zone audio installations.
